| الاسم التجاري: | Zhong He |
| رقم الطراز: | تشونغ هي |
| الـ MOQ: | 1 |
| السعر: | قابل للتفاوض |

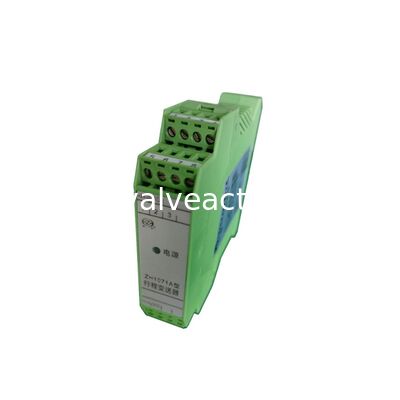

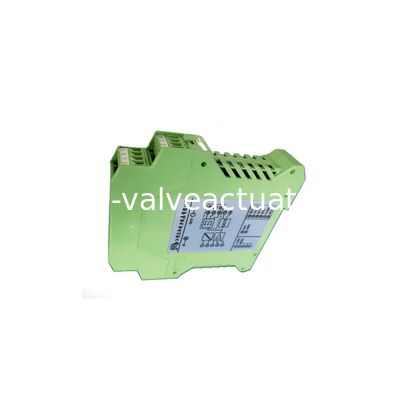

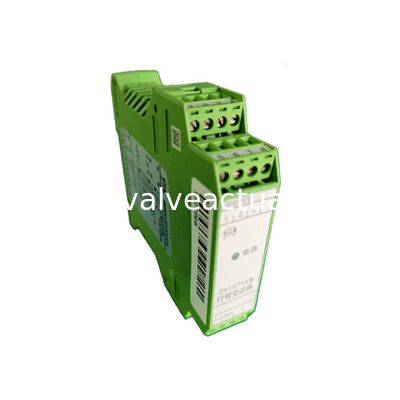

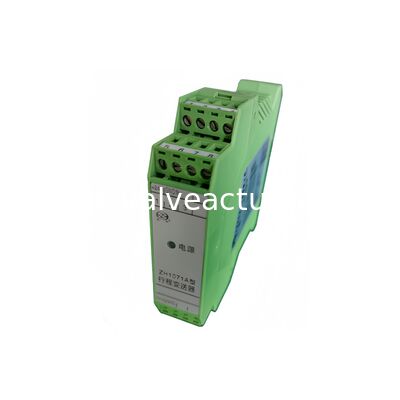

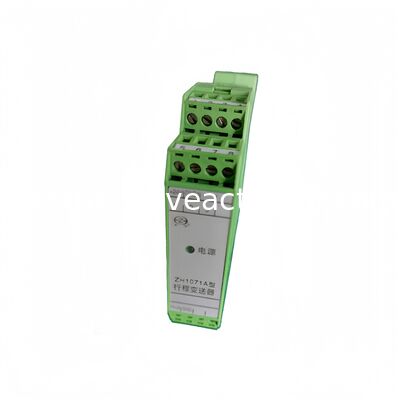

The Zhong He ZH1071A is a high-precision AC LVDT (Linear Variable Differential Transformer) displacement transmitter engineered for accurate stroke measurement and linear displacement detection. Utilizing advanced inductive sensing technology, this contactless sensor converts linear mechanical motion into proportional electrical signals, delivering exceptional reliability in demanding industrial environments.
This AC LVDT sensor features a primary winding and two symmetric secondary windings with a movable ferromagnetic core that moves axially without physical contact with the coil assembly. The contactless design ensures frictionless operation and virtually infinite service life.
| Operating Principle | AC LVDT (Linear Variable Differential Transformer) |
|---|---|
| Excitation | AC: 1~5V, 1~5kHz |
| Output Signal | Differential AC signals proportional to displacement |
| Output Interface | 4~20mA analog output |
| Protection Rating | IP65 fully sealed stainless steel housing |
| Mounting | Standard threaded mounting |
Designed for seamless integration with DCS, PLC systems, and data recorders, the ZH1071A is widely applied in:
