| الاسم التجاري: | Schneider |

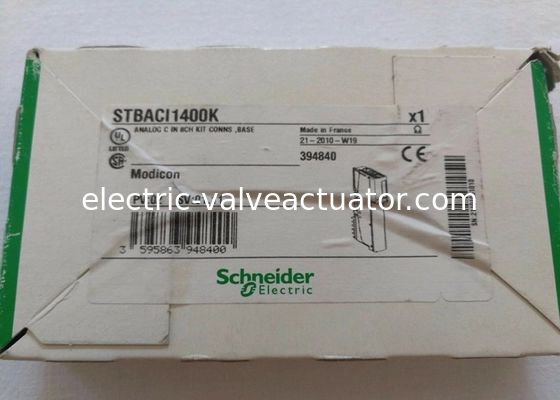

| رقم الطراز: | STBACI1400K |
| الـ MOQ: | 1 |
| السعر: | Negotiations |
Unity Processor Modicon Quantum - 548 Kb - 66 Mhz
Quantum | 140CPU31110 | Modicon | 140 CPU 311 10 | Processor 400K RAM
Unity processor Modicon Quantum - 548 kB - 66MHz Integrated connection type 1 Modbus Plus 2 Modbus Checks Process control Memory description Internal RAM 548 kB Switch function Slide switch communication port : ASCII/RTU/Memory Slide switch memory port/off Application structure No auxiliary task 64 interrupt tasks 64 I/O interrupt tasks 16 timer interrupt tasks 1 periodic fast task 1 cyclic/periodic master task Execution time per instruction 0.12...0.585 μs on word 0.12...0.585 μs Boolean 0.1...0.27 μs on fixed-point arithmetic 0.1...0.27 μs floating points Execution time for 1 K instruction 2.49 65 % Boolean and 35 % numerical 1.86 100 % Boolean System overhead 1 ms - master task 0.2 ms - fast task Bus current requirement 1800 mA Local signalling 1 LED red for communications error on the Modbus Plus port (ERROR A) 1 LED red for battery needs replacing or is not present (BAT LOW) 1 LED orange for write-protected memory (memory port) 1 LED green for CPU has passed the power-up diagnostic tests (READY) 1 LED green for CPU has been started and is solving logic (RUN) 1 LED green for communications are active on the Modbus port (Modbus) 1 LED green for communications are active on the Modbus Plus port (Modbus Plus) Electrical connection 2 female connectors, connector type: SUB-D 9 for connecting to the Modbus bus 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network.
| Manufacturer: | Modicon Quantum |
| Series: | Quantum CPUs |
| Weight: | 2 lb |
| Clock frequency: | 66 MHz |
| Number of slots: | 10 | 16 | 2 | 4 | 6 |
| Number of racks: | 2 - local rack(s) |
| Number of distributed I/O station: | 63 station(s) - 1 rack(s) - 3 distributed network(s) |
| Number of remote I/O station: | 31 - 2 remote rack(s) |
| Discrete I/O number: | 8000 inputs, 8000 outputs - distributed - per network | 31744 inputs, 31744 outputs - remote | Unlimited (27 slots max) - local |
| Analogue I/O number: | 500 inputs, 500 outputs - distributed - per network | 1984 inputs,1984 outputs - remote | Unlimited (27 slots max) - local |
| Application specific I/O: | Accurate time stamping | Counter | High-speed interrupt inputs | Serial link |
| Number of optional modules: | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections: | Unlimited (AS-Interface) - local | 4 (AS-Interface) - remote | 2 (Profibus DP) - local | 2 (Modbus) - RS232/485 Modbus/ASCII | 2 (Modbus Plus) - local | 2 (Ethernet TCP/IP) - local | 2 (AS-Interface) - distributed | 1 (USB) |
| Integrated connection type: | 1 Modbus Plus | 2 Modbus |
| Checks: | Process control |
| Memory description: | Internal RAM 548 kB |
| Switch function: | Slide switch communication port : ASCII/RTU/Memory | Slide switch memory port/off |
| Application structure: | No auxiliary task | 64 interrupt tasks | 64 I/O interrupt tasks | 16 timer interrupt tasks | 1 periodic fast task | 1 cyclic/periodic master task |
| Category | 18150 - QUANTUM CONTROLLERS,HSBY,COMM. |
| Discount Schedule | PC21 |
| GTIN | 00785901663386 |
| Nbr. of units in pkg. | 1 |
| Package weight(Lbs) | 1.7 |
| Returnability | Y |
| Country of origin | FR |
| Sustainable offer status | Green Premium product |
| RoHS (date code: YYWW) | Compliant - since 0948 - Schneider Electric declaration of conformity |
| REACh | Reference not containing SVHC above the threshold |
| Product environmental profile | Available |
| Product end of life instructions | Available |
ConneXium™ managed switches (continued) Predefined configuration files (continued) Example topology with predefined configuration files C5, C1 and C3 (1) A common use of this preconfiguration is for interfacing a copper link with a fiber optic link on the primary ring or interfacing a fiber optic link with a copper link. This type of architecture makes it possible to have Ethernet DIO or Ethernet RIO drops some distance away from the PLC. The switch preconfiguration also enables Ethernet RIO and/or several Ethernet DIO device clouds to be connected to a secondary ring.
