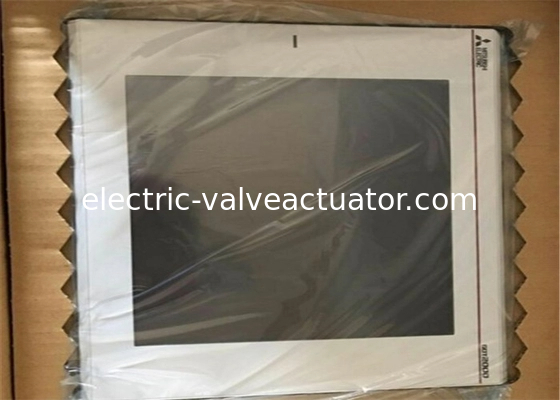

Mitsubishi Human Machine Interface GOT 2000 GT2710-VTWD Touch Screen

Mitsubishi Human Machine Interface GOT 2000 GT2710-VTWD Touch Screen

الاسم التجاري: Mitsubishi
رقم الطراز: GT2710-VTWD
الـ MOQ: 1
السعر: قابل للتفاوض
شروط الدفع: L/C، D/A، D/P، T/T، Western Union، MoneyGram
القدرة على التوريد: في المخزون
معلومات مفصلة
مكان المنشأ:
اليابان
إصدار الشهادات:
CE
تفاصيل التغليف:
الصندوق الأصلي الجديد
القدرة على العرض:
في المخزون
إبراز:

GT2710-VTWD Touch Screen,GT2710-VTWD Touch Screen Interface

,

GT2710-VTWD Touch Screen Interface

وصف المنتج
Detailed Product Description
Brand: Mitsubishi Model Item: GT2710-VTWD
Plan Of Original: Japan Screen Size: 10.4 "inch
Manufacturer Series: GOT 2000 VGA Resolution: 640 × 480px, 65,536 Colors
Supply Voltage: 100 To 240VAC (+ 10%, -15%), 50 / 60Hz ± 5% Power Supply: 24 V Dc
Lithium Battery: GT11-50BAT
Highlight:

hmi display touch screen

,

industrial hmi panels





Mitsubishi Human Machine Interface GOT 2000 GT2710-VTWD Touch Screen





Product Details

  • GT27 10.4 INCH WHITE VGA COLOR TOUCHSCREEN DC (GT2710VTWD)
  • Manufacturer: Mitsubishi
  • Series: GOT2000



Technical Specifications


Condition New
Weight (kg) 2.1
Our Part Number GT2710VTWD
Height (mm) 218
Width (mm) 303
Depth (mm) 52
Manufacturer Mitsubishi
Manufacturer Range GOT
Manufacturer Series GOT 2000
IP Rating IP67
IP Rating Back IP20
Display Colour 65536
Display Resolution 640 x 480



Display Size 10.4"
Display Type TFT
Backlighting Yes
Internal Memory (Mb) 128
Keyboard Type Touch Screen
Screen Aspect Landscape





Specifications



Screen size: 10.4"
Display type: TFT colour LCD
Display dimensions: w211.2 x h158.4mm
Graphical resolution: 640 x 480 pixels
Power supply: 24V d.c.
Interface: RS422, RS232, Ethernet, USB and SD card
Overall dimensions: w303 x h218 x d52mm


Features:

  • Flush, white panel versions for food and beverage applications
  • Multi-touch, pinch-zoom capability
  • Built-in Ethernet, RS232 & RS422/485
  • SD memory card slot
  • Operator authentication and logging
  • Wide choice of drivers for Mitsubishi and other manufacturers controllers
  • All versions have 65K colour screens
  • Oil resistant protective sheets available



High Specification Models With Multi-Touch/Gesture Control

The operating terminals of the GT27 series provide TFT LCD displays with 65K colours and screen sizes of 5.7", 8.4", 10.4", 12.1" and 15" with VGA/SVGA/XGA resolution and up to 128MB internal memory. All terminals come with Ethernet, USB, RS232, and RS422/485 interfaces and SD card slot. Additionally the GT27 can be equipped with optional interfaces like CC-Link IE, CC-Link IE Field, CC-Link, MELSECNET/H and a direct connection to the PLC bus.

Special models of the GT27 with the sizes of 10.4" and 12.1" are available with a white frame and without the front USB interface, ideal for Food and Beverage applications.

The GT27 offers several pre defined diagnostic and troubleshooting functions, like backup/restore, PLC program monitor, servo/motion monitor, motion SFC monitor and CNC monitor.
