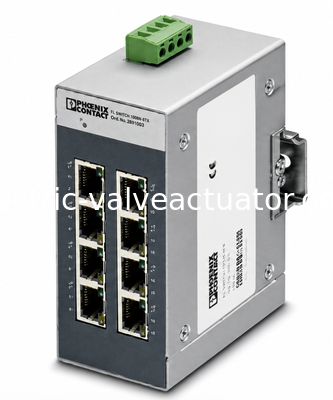

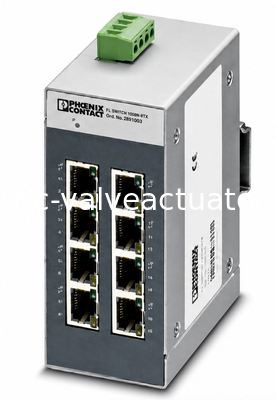

Phoenix Contact FL SWITCH SFNB 8TX 2891002 Compact Industrial Network Switch, 8 RJ45 Fast Ethernet Ports

Phoenix Contact FL SWITCH SFNB 8TX 2891002 Compact Industrial Network Switch, 8 RJ45 Fast Ethernet Ports

الاسم التجاري: Phoenix
رقم الطراز: FL SWITCH SFNB 8TX - 2891002
الـ MOQ: 1
السعر: قابل للتفاوض
معلومات مفصلة
مكان المنشأ:
تصنيع المعدات الأصلية
واجهة إيثرنت:
(RJ45)
Number of ports 8:
(RJ45 ports)
مبدأ النقل:
كابل إيثرنت RJ45 زوج ملتوي
سرعة الإرسال:
10/100 ميجابت / ثانية
طول الإرسال:
100 متر (لكل قطعة)
جهد إمداد الطاقة:
24 فولت تيار مستمر
Residual wave:
3.6 VPP (within the allowable voltage range)
Power supply voltage range:
9 V DC... 32 V DC
Typical current consumption:
140 mA (US=24 V DC)
Maximum current consumption:
380 mA (@ 9 V DC)
تفاصيل التغليف:
الصندوق الأصلي الجديد
وصف المنتج
Phoenix Contact FL SWITCH SFNB 8TX 2891002 Compact Industrial Network Switch
The Phoenix Contact FL SWITCH SFNB 8TX is a compact, unmanaged industrial Ethernet switch designed for reliable network expansion in demanding automation and process control environments. This robust device bridges the gap between office-grade equipment and industrial requirements, offering a cost-effective solution for connecting PLCs, HMIs, VFDs, sensors, and other Ethernet-enabled field devices.
Key Features
  • 8 RJ45 Fast Ethernet ports with auto-negotiation
  • Automatic crossover detection for plug-and-play operation
  • Store-and-forward switching architecture for data integrity
  • Compact metal enclosure with DIN rail mounting
  • Rugged industrial construction for harsh environments
  • Integrated diagnostic LEDs for network status monitoring
  • Zero-maintenance operation with no configuration required
Technical Specifications
Port Configuration 8 x RJ45 10/100 Mbps Ethernet ports
Switching Method Store-and-forward
Mounting DIN rail
Enclosure Metal with powder-coated finish
Operating Temperature Industrial grade (specific range depends on model)
This unmanaged switch requires no IP addressing, VLAN configuration, or firmware management, making it ideal for machine builders who need dependable Ethernet connectivity that works immediately upon installation and continues to perform reliably throughout the equipment lifecycle.
Applications
Ideal for use as a primary switching node in production cells, distributed access switches in larger networks, or for adding Ethernet drops to existing control cabinets. Suitable for connecting programmable logic controllers, human-machine interfaces, variable frequency drives, intelligent sensors, barcode readers, RFID terminals, and IP cameras.
