Fluke Ti400+ Industrial Thermal Inspection Camera for Preventive Maintenance

الاسم التجاري:	Fluke
رقم الطراز:	تي400+
الـ MOQ:	1
السعر:	Negotistical

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

تصنيع المعدات الأصلية

إيفوف:

1.85 مراد

تفاصيل التغليف:

الصندوق الأصلي الجديد

وصف المنتج

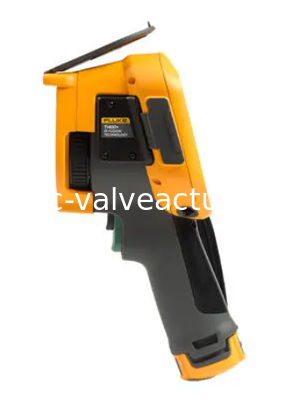

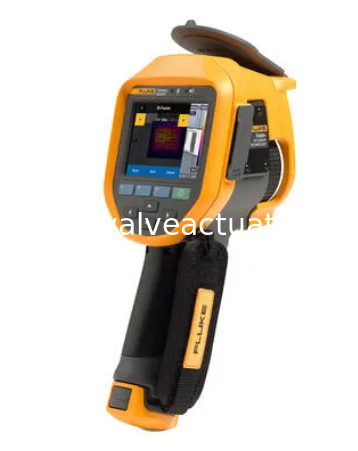

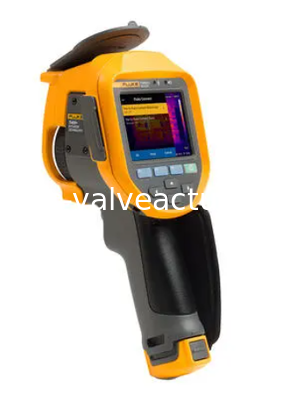

Fluke Ti400+ Industrial Thermal Inspection Camera for Preventive Maintenance

Product Overview

The Fluke Ti400+ is a professional-grade thermal inspection camera designed specifically for industrial preventive maintenance applications, offering advanced imaging capabilities and robust construction.

Key Features

Infrared Resolution

76,800 pixels (320 x 240 detector)

LaserSharp® Autofocus

Yes, with laser rangefinder for precise focus

Display

3.5-inch rugged touchscreen (640 x 480 LCD)

Design

Rugged and ergonomic for one-handed operation

Temperature Measurement

Measurement Range	-20°C to 650°C (-4°F to 1202°F)
Accuracy	±2°C or 2% (whichever is larger at 25°C)
Thermal Sensitivity (NETD)	≤0.075°C at 30°C target temperature
Emissivity Correction	Yes (numerical and tabular)

Wireless Connectivity

Connect to PC, iPhone®, iPad®, and Android™ devices
WiFi to LAN connectivity
Compatible with Fluke Connect® app for automatic image capture and sharing
Optional Fluke Connect® asset software for reporting and analysis
Wireless connection to Fluke Connect-enabled tools

IR-Fusion® Technology

Adds visible detail to infrared images
AutoBlend™ Modes: Min, Mid, Max IR
Picture-in-Picture (PIP) capability
Built-in 5 MP digital camera

Lens Options

Standard Lens	IFOV: 1.85 mRad, FOV: 34°H x 24°V, Min Focus: 15 cm
2x Telephoto Smart Lens	IFOV: 0.65 mRad, FOV: 12°H x 9°V, Min Focus: 45 cm
4x Telephoto Smart Lens	IFOV: 0.33 mRad, FOV: 6°H x 4.5°V, Min Focus: 45 cm
Wide-Angle Smart Lens	IFOV: 2.62 mRad, FOV: 46°H x 34°V, Min Focus: 15 cm

Data Storage & Image Capture

Removable 4 GB Micro SD card and 4 GB built-in flash memory
One-handed image capture, viewing, and saving
File formats: .bmp, .jpeg, .is2, .avi
Voice annotations (up to 60 seconds per image)
IR-PhotoNotes™ and text annotations
Comprehensive SmartView® software for analysis and reporting

Power & Operation

Battery	Two field-replaceable lithium-ion packs
Battery Life	2-3 hours per battery (varies with usage)
Charging Time	2.5 hours to full charge
AC Operation	100-240 VAC, 50/60 Hz via included power supply

General Specifications

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-20°C to +50°C (-4°F to 122°F)
Environmental Rating	IP54 (dust protected, splash proof)
Drop Resistance	2 meters (with standard lens)
Dimensions	27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in)
Weight	1.04 kg (2.3 lb) including battery
Warranty	Two years standard (extended available)
Calibration Cycle	Recommended every two years
