High voltage Spark gap Boiler Ignition System Glass tube High Energy Spark Ignition

الاسم التجاري:	OEM
رقم الطراز:	سلسلة XDZ
الـ MOQ:	1 مجموعة
شروط الدفع:	تي/تي
القدرة على التوريد:	500

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

تفاصيل التغليف:

صندوق خشبي التعبئة

القدرة على العرض:

500

إبراز:

high voltage spark gap boiler ignition,glass tube high energy spark ignition,high performance ignition system with warranty

glass tube high energy spark ignition

high performance ignition system with warranty

وصف المنتج

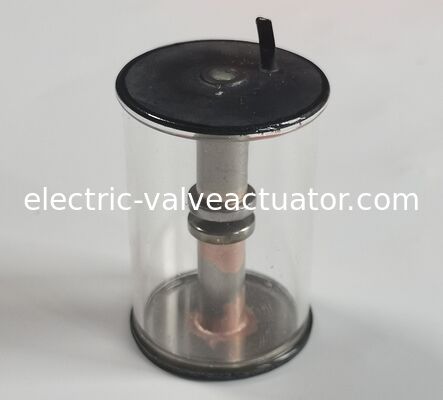

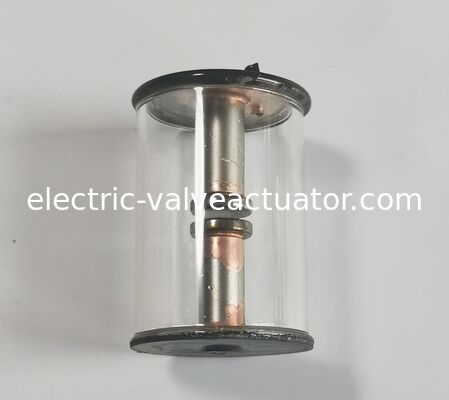

High Voltage Spark Gap Boiler Ignition System

Glass tube high energy spark ignition system designed for reliable boiler ignition applications.

Product Overview

Standard Type Soft Rod Explosion Proof High Energy Igniting Gun - High Performance Ignition System XDZ-1R-l/d B 600～1400V

Product Description

Utilizes DC voltage input from ignition cable to discharge and form high energy electric sparks at the ignition head.

Technical Advantages

Low ignition voltage requirements
Excellent temperature resistance
Safety and reliability with strong pollution resistance

Applications

Compatible with XDH high-energy ignition device assemblies for various industrial applications.

Product Models and Series

Sr.	Model	Description
1	XDZ-1-l/d	Standard type hard rod high energy ignition gun
2	XDZ-1-l/d B	Standard type hard rod explosion-proof high-energy igniting gun
3	XDZ-1-l/d K	Standard type hard gun handle high energy ignition gun
4	XDZ-1R-l/d	Standard type soft rod high energy ignition gun
5	XDZ-1R-l/d B	Standard type soft rod explosion-proof high-energy igniting gun
6	XDZ-2-l/d	Non standard hard rod high energy ignition gun
7	XDZ-2-l/d B	Non standard hard rod explosion-proof high-energy igniting gun
8	XDZ-2R-l/d	Non standard soft rod high energy ignition gun
9	XDZ-2R-l/d B	Non standard soft rod explosion-proof high-energy igniting gun
10	XDZ-3-l/d	Special electric nozzle high-energy igniting gun
11	XDZ-3-l/d B	Explosion proof special electric nozzle high-energy igniting gun
12	XDZ-4-l/d B	The hard rod high clearance point guns

Note:
① In the table, code "l" represents igniting gun length in mm
② In the table, "d" represents igniting gun diameter with 14mm, 16mm, 18mm series available
③ Custom designs and production available according to user requirements

Performance Parameters

Parameter Name	Unit	Data
Starting ignition voltage	VDC	600～1400
Center electrode resistance	Ω	≤0.1
Firing end long-term temperature	℃	≤800
Firing end short-time (<5min) temperature resistance	℃	1250
