| الاسم التجاري: | OEM |
| رقم الطراز: | TRQY2 |
| الـ MOQ: | 1 |
| السعر: | Negotiations |
| Product name | Triangle sampling template |
|---|---|
| Customized processing | yes |
| Product Usage | Transformer Sampling |
| Scope of application | Electric dust collector control |

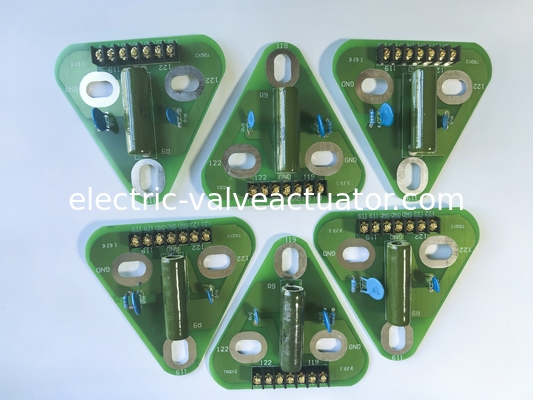

The TRQY2 Silicon Rectifier Power Transformer Sampling Board is specifically tailored to complement the GGAJ02 High-Efficiency Dust Removal Purifier, delivering stable and reliable power support for its continuous operation. Crafted with high-grade silicon steel cores and precision-wound windings, this sampling board ensures efficient voltage rectification and consistent power output, directly meeting the GGAJ02's power requirements for multi-stage filtration systems and air-purifying components.

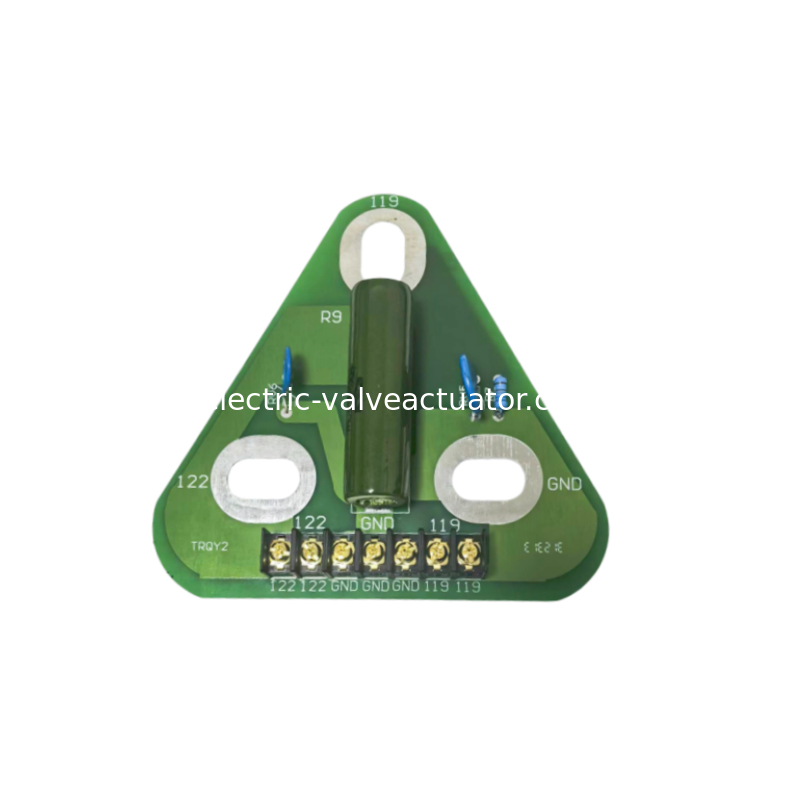

The product is also known as Triangle Sampling Sample. It converts the secondary voltage and current of the silicon rectifier transformer of the electrostatic precipitator into voltage signals of 0~10V and 0~6V, respectively, which are displayed and controlled by the control cabinet, forming a closed-loop control system to protect the transformer. The 119 secondary voltage is sampled, GND is grounded, and 122 is grounded for the secondary current.
As a dedicated power matching component for the GGAJ02 Dust Removal Purifier, the TRQY2 Sampling Board guarantees a harmonious and dependable system operation, enhancing overall air purification efficiency while minimizing downtime and operational costs.
