Schneider TeSys D series tri-pole contactor LC1D09B7 from 0.06 to 75kW contactors

Name: Schneider TeSys D series tri-pole contactor LC1D09B7 from 0.06 to 75kW contactors
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: LC1D09B7
Price: 210.00 USD
Availability: InStock

الاسم التجاري:	Schneider
رقم الطراز:	LC1D09B7
الـ MOQ:	1
السعر:	قابل للتفاوض
شروط الدفع:	L/C، D/A، D/P، T/T، Western Union، MoneyGram
القدرة على التوريد:	في المخزون

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

تفاصيل التغليف:

الصندوق الأصلي الجديد

القدرة على العرض:

في المخزون

إبراز:

LC1D09B7 tri pole Contactor,Schneider tri pole Contactor

Schneider tri pole Contactor

وصف المنتج

Detailed Product Description

Manufacturer:	Schneider	Item:	LC1D09B7
Contactor Coil Voltage:	24 V AC Standard	Series:	TeSys
Front Cover:	With	Contactor Compatibility Feature:	M2
Weight:	0.32 Kg	Shipping Term::	DHL Fedex TNT EMS UPS
Payment Terms::	T/T, Western Union,Paypal
Highlight:	ethernet plc controllers , industrial automation using plc

Schneider TeSys D series tri-pole contactor LC1D09B7 from 0.06 to 75kW contactors

Contactor application area:

It is applied to switch on the squirrel cage motor which is normally started by switching off

Applied to AC loads with a power factor of 0.95 or greater

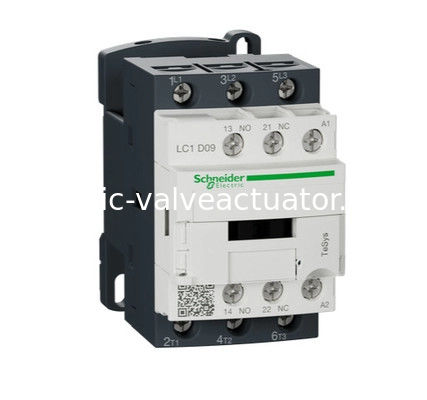

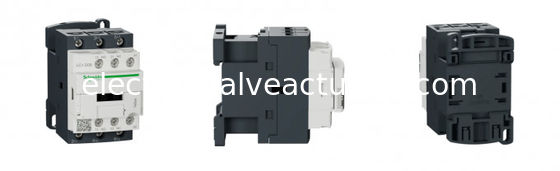

Photo:

The main information:

Product series TeSys

Product name TeSys D

Product type contactor

Product short name LC1D

Contactor application area:

It is applied to switch on the squirrel cage motor which is normally started by switching off

Applied to AC loads with a power factor of 0.95 or greater

Using the categories:

AC -4

AC - 1

AC - 3

The number of 3 p

Contact Composition 3 NO

Rated operating voltage [Ue]

Power circuit: <= 690 V AC 25... 400 Hz

Power supply circuit: <= 300 V DC

Technique Question:

How to choose RC current suppressor module of Tesys D contactor LC1D09-38Q*?

Problem description:

Tesys D contactor LC1D09-38Q* RC current suppressor module selection.

Product line:

Domestic TeSys contactor, imported TeSys D contactor

Solutions:

LC1D09-38 contactor does not have RC circuit corresponding to 380-415VAC. LA4DA2N can be selected if used and must be installed on LAD4BB coil adapter.

Which coil voltage grade does N represent in LC1D09N7 and LC1D09ND?

Problem description:

In LC1D09N7 and LC1D09ND, N represents coil voltage class respectively.

Product line:

Imported Tesys D contactor

Solutions:

The former represents the coil voltage of 415VAC, while the latter represents the coil voltage of 60VDC. The 60VAC coil voltage code is EE7.

Why can't LRD10 and LC1D09M7 be fixed?

Problem description:

The reason why LRD10 and LC1D09M7 cannot be fixed when inserted.

Product line:

Imported Tesys D contactor

Solutions:

The two bulges on LRD10 are used for positioning and are not used for fixation. Screw terminals shall be tightened and fixed after the thermal relay and contacter are inserted.

Similar Models for Universal frequency converter:

LC1D09P7

LC1D09BD

LC1D12B7

LC1D12BD

LC1D32P7

LC1D32F7

LC1D38M7

LC1D38F7

LC1D80M7

LC1D95B7

LC1DT60AU7

LP1D65008BD

Above the models are similar as this products. If you have need, you can dierectly send me for quote.

Order Process:

1, First, send us the brand, model code/pic of the nameplate, the quantity for inquiry. Then we will send the quote to you. after confirming the model and the quantity, then we will the PI to you.

2, You can transfer by Paypal/ Western Union/Trade assurance/ T/T. When we received the payment, then we will start to prepare the order for you asap.

3, We can according to your shipment to ship out the goods, Or we also can help you to ship out the goods directly. And the tracking number will send you by the next day.

4., Usually for our inventory goods only need to take about 3-5 days.

5. If you also have any questions, you can ask me any time, right below is my contact.
