| الاسم التجاري: | ABB |
| رقم الطراز: | M2QA QABP QAEJ; MQAEJ M2QA |

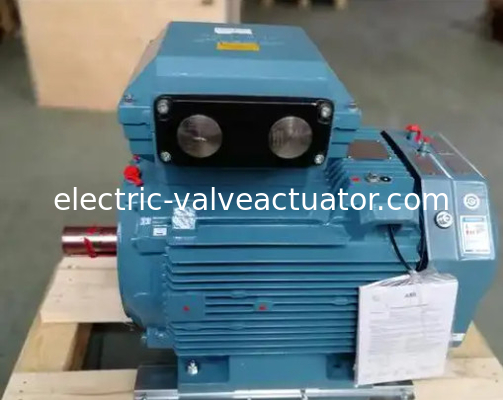

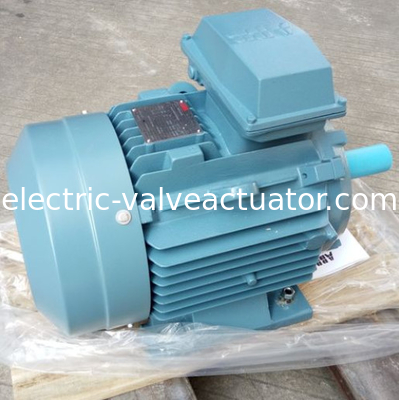

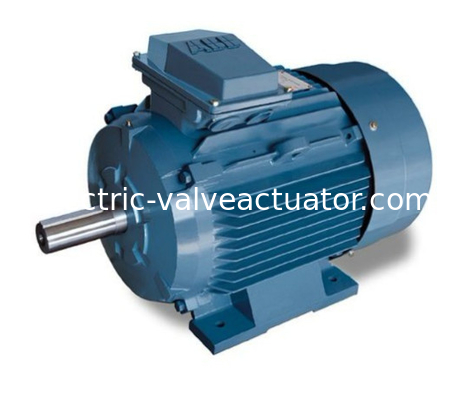

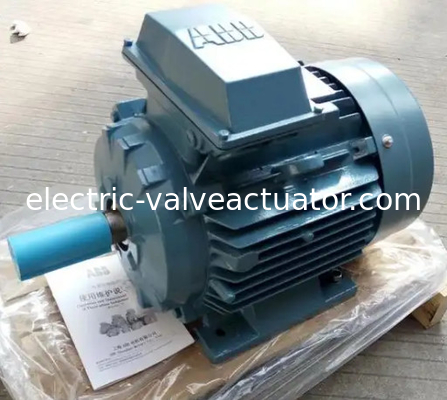

تقدم ABB مجموعة من المحركات ذات الجهد المنخفض، بما في ذلك سلسلة M2QA، وسلسلة M2BAF، وسلسلة M2BAX، وسلسلة M3AA، وسلسلة M3BP، وسلسلة QAMT، وسلسلة QABP، وسلسلة M2JAX، وسلسلة M3JP.
| قوة | نموذج | عدد الأعمدة | طريقة التثبيت:B3 رقم الطلب |
طريقة التثبيت:B5 رقم الطلب |
| 3000 دورة/دقيقة = 2 قطب | ||||
| 0.75 | M3JP80MA | 2 | 3GJP081310-A_H | 3GJP081310-B_H |
| 1.1 | M3JP80 ميجابايت | 2 | 3GJP081320-A_H | 3GJP081320-B_H |
| 1.5 | M3JP90SLA | 2 | 3GJP091010-A_H | 3GJP091010-B_H |
| 2.2 | M3JP90SLC | 2 | 3GJP091030-A_H | 3GJP091030-B_H |
| 3 | M3JP100LA | 2 | 3GJP101510-A_H | 3GJP101510-B_H |
| 4 | M3JP112 ميجابايت | 2 | 3GJP111320-A_H | 3GJP111320-B_H |
| 5.5 | M3JP132SMB | 2 | 3GJP131220-A_H | 3GJP131220-B_H |
| 7.5 | M3JP132SMD | 2 | 3GJP131240-A_H | 3GJP131240-B_H |
| 11 | M3JP160MLA | 2 | 3GJP161410-A_H | 3GJP161410-B_H |
| 15 | M3JP160MLB | 2 | 3GJP161420-A_H | 3GJP161420-B_H |
| 18.5 | M3JP160MLC | 2 | 3GJP161430-A_H | 3GJP161430-B_H |
| 22 | M3JP180MLA | 2 | 3GJP181410-A_H | 3GJP181410-B_H |
| 30 | M3JP200MLA | 2 | 3GJP201410-A_G | 3GJP201410-B_G |
| 37 | M3JP200MLC | 2 | 3GJP201430-A_G | 3GJP201430-B_G |
| 45 | M3JP225SMB | 2 | 3GJP221220-A_G | 3GJP221220-B_G |
| 55 | M3JP250SMA | 2 | 3GJP251210-A_G | 3GJP251210-B_G |
| 75 | M3JP280SMA | 2 | 3GJP281210-A_G | 3GJP281210-B_G |
| 90 | M3JP280SMB | 2 | 3GJP281220-A_G | 3GJP281220-B_G |
| 110 | M3JP315SMA | 2 | 3GJP311210-A_G | 3GJP311210-B_G |
| 132 | M3JP315SMB | 2 | 3GJP311220-A_G | 3GJP311220-B_G |
| 160 | M3JP315SMC | 2 | 3GJP311230-A_G | 3GJP311230-B_G |
| 200 | M3JP315MLA | 2 | 3GJP311410-A_G | 3GJP311410-B_G |
| 250 | M3JP355SMA | 2 | 3GJP351210-A_G | 3GJP351210-B_G |
| 315 | M3JP355SMB | 2 | 3GJP351220-A_G | 3GJP351220-B_G |
| 355 | M3JP355SMC | 2 | 3GJP351230-A_G | 3GJP351230-B_G |
| 400 | M3JP355MLA | 2 | 3GJP351410-A_G | 3GJP351410-B_G |
| 450 | M3JP355MLB | 2 | 3GJP351420-A_G | 3GJP351420-B_G |
| 500 | M3JP355LKA | 2 | 3GJP351810-A_G | 3GJP351810-B_G |
| 560 | M3JP400LA | 2 | 3GJP401510-A_G | 3GJP401510-B_G |
| 560 | M3JP400LKA | 2 | 3GJP401810-A_G | 3GJP401810-B_G |
| 630 | M3JP400LB | 2 | 3GJP401520-A_G | 3GJP401520-B_G |
| 630 | M3JP400LKB | 2 | 3GJP401820-A_G | 3GJP401820-B_G |
| 710 | M3JP400LC | 2 | 3GJP401530-A_G | 3GJP401530-B_G |
| 710 | M3JP400LKC | 2 | 3GJP401830-A_G | 3GJP401830-B_G |
| 3000 دورة/دقيقة = 2 قطب | ||||
| 9.2 | M3JP132SME | 2 | 3GJP131250-A_H | 3GJP131250-B_H |
| 22 | M3JP160MLD | 2 | 3GJP161440-A_H | 3GJP161440-B_H |
| 30 | M3JP180MLB | 2 | 3GJP181420-A_H | 3GJP181420-B_H |
| 37 | M3JP180MLC | 2 | 3GJP181430-A_H | 3GJP181430-B_H |
| 45 | M3JP200MLE | 2 | 3GJP201450-A_G | 3GJP201450-B_G |
| 55 | M3JP225SMC | 2 | 3GJP221230-A_G | 3GJP221230-B_G |
| 67 | M3JP225SMD | 2 | 3GJP221240-A_G | 3GJP221240-B_G |
| 75 | M3JP250SMB | 2 | 3GJP251220-A_G | 3GJP251220-B_G |
| 90 | M3JP250SMC | 2 | 3GJP251230-A_G | 3GJP251230-B_G |
| 110 | M3JP280SMC | 2 | 3GJP281230-A_G | 3GJP281230-B_G |
| 1) فئة كفاءة IE1 | ||||
| 1500 دورة/دقيقة = 4 أقطاب | ||||
| 0.55 | M3JP80MA | 4 | 3GJP082310-A_H | 3GJP082310-B_H |
| 0.75 | M3JP80 ميجابايت | 4 | 3GJP082320-A_H | 3GJP082320-B_H |
| 1.1 | M3JP90SLA | 4 | 3GJP092010-A_H | 3GJP092010-B_H |
| 1.5 | M3JP90SLC | 4 | 3GJP092030-A_H | 3GJP092030-B_H |
| 3 | M3JP100LB | 4 | 3GJP102520-A_H | 3GJP102520-B_H |
| 4 | M3JP112MC | 4 | 3GJP112330-A_H | 3GJP112330-B_H |
| 5.5 | M3JP132SMB | 4 | 3GJP132220-A_H | 3GJP132220-B_H |
| 7.5 | M3JP132SMD | 4 | 3GJP132240-A_H | 3GJP132240-B_H |
| 11 | M3JP160MLC | 4 | 3GJP162430-A_H | 3GJP162430-B_H |
| 15 | M3JP160MLE | 4 | 3GJP162450-A_H | 3GJP162450-B_H |
| 18.5 | M3JP180MLA | 4 | 3GJP182410-A_H | 3GJP182410-B_H |
| 30 | M3JP200MLB | 4 | 3GJP202420-A_G | 3GJP202420-B_G |
| 37 | M3JP225SMB | 4 | 3GJP222220-A_G | 3GJP222220-B_G |
| 45 | M3JP225SMC | 4 | 3GJP222230-A_G | 3GJP222230-B_G |
| 55 | M3JP250SMA | 4 | 3GJP252210-A_G | 3GJP252210-B_G |
| 75 | M3JP280SMA | 4 | 3GJP282210-A_G | 3GJP282210-B_G |
| 90 | M3JP280SMB | 4 | 3GJP282220-A_G | 3GJP282220-B_G |
| 110 | M3JP315SMA | 4 | 3GJP312210-A_G | 3GJP312210-B_G |
| 132 | M3JP315SMB | 4 | 3GJP312220-A_G | 3GJP312220-B_G |
| 160 | M3JP315SMC | 4 | 3GJP312230-A_G | 3GJP312230-B_G |
| 200 | M3JP315MLA | 4 | 3GJP312410-A_G | 3GJP312410-B_G |
| 250 | M3JP355SMA | 4 | 3GJP352210-A_G | 3GJP352210-B_G |
| 315 | M3JP355SMB | 4 | 3GJP352220-A_G | 3GJP352220-B_G |
| 355 | M3JP355SMC | 4 | 3GJP352230-A_G | 3GJP352230-B_G |
| 400 | M3JP355MLA | 4 | 3GJP352410-A_G | 3GJP352410-B_G |
| 450 | M3JP355MLB | 4 | 3GJP352420-A_G | 3GJP352420-B_G |
| 500 | M3JP355LKA | 4 | 3GJP352810-A_G | 3GJP352810-B_G |
| 560 | M3JP400LKA | 4 | 3GJP402810-A_G | 3GJP402810-B_G |
| 560 | M3JP400LA | 4 | 3GJP402510-A_G | 3GJP402510-B_G |
| 630 | M3JP400LKB | 4 | 3GJP402820-A_G | 3GJP402820-B_G |
| 630 | M3JP400LB | 4 | 3GJP402520-A_G | 3GJP402520-B_G |
| 710 | M3JP400LKC | 4 | 3GJP402830-A_G | 3GJP402830-B_G |
| 710 | M3JP400LC | 4 | 3GJP402530-A_G | 3GJP402530-B_G |
| 1500 دورة/دقيقة = 4 أقطاب | ||||
| 9.2 | M3JP132SME | 4 | 3GJP132250-A_H | 3GJP132250-B_H |
| 18.5 | M3JP160MLF | 4 | 3GJP162460-A_H | 3GJP162460-B_H |
| 22 | M3JP160MLG | 4 | 3GJP162470-A_H | 3GJP162470-B_H |
| 30 | M3JP180MLC | 4 | 3GJP182430-A_H | 3GJP182430-B_H |
| 37 | M3JP200MLC | 4 | 3GJP202430-A_G | 3GJP202430-B_G |
| 55 | M3JP225SMD | 4 | 3GJP222240-A_G | 3GJP222240-B_G |
| 62 | M3JP225SME | 4 | 3GJP222250-A_G | 3GJP222250-B_G |
| 75 | M3JP250SMB | 4 | 3GJP252220-A_G | 3GJP252220-B_G |
| 86 | M3JP250SMC | 4 | 3GJP252230-A_G | 3GJP252230-B_G |
| 110 | M3JP280SMC | 4 | 3GJP282230-A_G | 3GJP282230-B_G |
| 1) فئة كفاءة IE1 | ||||
| 1000 دورة/دقيقة = 6 أقطاب | ||||
| 0.37 | M3JP80MA | 6 | 3GJP083310-A_H | 3GJP083310-B_H |
| 0.55 | M3JP80 ميجابايت | 6 | 3GJP083320-A_H | 3GJP083320-B_H |
| 0.75 | M3JP90SLA | 6 | 3GJP093010-A_H | 3GJP093010-B_H |
| 1.1 | M3JP90SLC | 6 | 3GJP093030-A_H | 3GJP093030-B_H |
| 1.5 | M3JP100LA | 6 | 3GJP103510-A_H | 3GJP103510-B_H |
| 2.2 | M3JP112 ميجابايت | 6 | 3GJP113320-A_H | 3GJP113320-B_H |
| 3 | M3JP132SMB | 6 | 3GJP133220-A_H | 3GJP133220-B_H |
| 4 | M3JP132SMC | 6 | 3GJP133230-A_H | 3GJP133230-B_H |
| 5.5 | M3JP132SMD | 6 | 3GJP133240-A_H | 3GJP133240-B_H |
| 7.5 | M3JP160MLA | 6 | 3GJP163410-A_H | 3GJP163410-B_H |
| 11 | M3JP160MLB | 6 | 3GJP163420-A_H | 3GJP163420-B_H |
| 15 | M3JP180MLB | 6 | 3GJP183420-A_H | 3GJP183420-B_H |
| 18.5 | M3JP200MLA | 6 | 3GJP203410-A_G | 3GJP203410-B_G |
| 22 | M3JP200MLB | 6 | 3GJP203420-A_G | 3GJP203420-B_G |
| 30 | M3JP225SMB | 6 | 3GJP223220-A_G | 3GJP223220-B_G |
| 37 | M3JP250SMA | 6 | 3GJP253210-A_G | 3GJP253210-B_G |
| 45 | M3JP280SMA | 6 | 3GJP283210-A_G | 3GJP283210-B_G |
| 55 | M3JP280SMB | 6 | 3GJP283220-A_G | 3GJP283220-B_G |
| 75 | M3JP315SMA | 6 | 3GJP313210-A_G | 3GJP313210-B_G |
| 90 | M3JP315SMB | 6 | 3GJP313220-A_G | 3GJP313220-B_G |
| 110 | M3JP315SMC | 6 | 3GJP313230-A_G | 3GJP313230-B_G |
| 132 | M3JP315MLA | 6 | 3GJP313410-A_G | 3GJP313410-B_G |
| 160 | M3JP355SMA | 6 | 3GJP353210-A_G | 3GJP353210-B_G |
| 200 | M3JP355SMB | 6 | 3GJP353220-A_G | 3GJP353220-B_G |
| 250 | M3JP355SMC | 6 | 3GJP353230-A_G | 3GJP353230-B_G |
| 315 | M3JP355MLB | 6 | 3GJP353420-A_G | 3GJP353420-B_G |
| 355 | M3JP355LKA | 6 | 3GJP353810-A_G | 3GJP353810-B_G |
| 400 | M3JP400LKA | 6 | 3GJP403810-A_G | 3GJP403810-B_G |
| 400 | M3JP400LA | 6 | 3GJP403510-A_G | 3GJP403510-B_G |
| 450 | M3JP400LKB | 6 | 3GJP403820-A_G | 3GJP403820-B_G |
| 450 | M3JP400LB | 6 | 3GJP403520-A_G | 3GJP403520-B_G |
| 500 | M3JP400LKC | 6 | 3GJP403830-A_G | 3GJP403830-B_G |
| 500 | M3JP400LC | 6 | 3GJP403530-A_G | 3GJP403530-B_G |
| 560 | M3JP400LD | 6 | 3GJP403540-A_G | 3GJP403540-B_G |
| 560 | M3JP400LKD | 6 | 3GJP403840-A_G | 3GJP403840-B_G |
| 610 | M3JP450LA | 6 | 3GJP453510-A_G | 3GJP453510-B_G |
| 1000 دورة/دقيقة = 6 أقطاب | ||||
| 14 | M3JP160MLC | 6 | 3GJP163430-A_H | 3GJP163430-B_H |
| 18.5 | M3JP180MLC | 6 | 3GJP183430-A_H | 3GJP183430-B_H |
| 30 | M3JP200MLC | 6 | 3GJP203430-A_G | 3GJP203430-B_G |
| 37 | M3JP225SMC | 6 | 3GJP223230-A_G | 3GJP223230-B_G |
| 45 | M3JP250SMB | 6 | 3GJP253220-A_G | 3GJP253220-B_G |
| 75 | M3JP280SMC | 6 | 3GJP283230-A_G | 3GJP283230-B_G |
| 1) فئة كفاءة IE1 | ||||
| 750 دورة/دقيقة = 8 أقطاب | ||||
| 0.18 | M3JP80MA | 8 | 3GJP084310-A_H | 3GJP084310-B_H |
| 0.25 | M3JP80 ميجابايت | 8 | 3GJP084320-A_H | 3GJP084320-B_H |
| 0.37 | M3JP90SLA | 8 | 3GJP094010-A_H | 3GJP094010-B_H |
| 0.55 | M3JP90SLC | 8 | 3GJP094030-A_H | 3GJP094030-B_H |
| 0.75 | M3JP100LA | 8 | 3GJP104510-A_H | 3GJP104510-B_H |
| 1.1 | M3JP100LB | 8 | 3GJP104520-A_H | 3GJP104520-B_H |
| 1.5 | M3JP112MC | 8 | 3GJP114330-A_H | 3GJP114330-B_H |
| 2.2 | M3JP132SMC | 8 | 3GJP134230-A_H | 3GJP134230-B_H |
| 3 | M3JP132SMD | 8 | 3GJP134240-A_H | 3GJP134240-B_H |
| 4 | M3JP160MLA | 8 | 3GJP164410-A_H | 3GJP164410-B_H |
| 5.5 | M3JP160MLB | 8 | 3GJP164420-A_H | 3GJP164420-B_H |
| 7.5 | M3JP160MLC | 8 | 3GJP164430-A_H | 3GJP164430-B_H |
| 11 | M3JP180MLB | 8 | 3GJP184420-A_H | 3GJP184420-B_H |
| 15 | M3JP200MLA | 8 | 3GJP204410-A_G | 3GJP204410-B_G |
| 18.5 | M3JP225SMA | 8 | 3GJP224210-A_G | 3GJP224210-B_G |
| 22 | M3JP225SMB | 8 | 3GJP224220-A_G | 3GJP224220-B_G |
| 30 | M3JP250SMA | 8 | 3GJP254210-A_G | 3GJP254210-B_G |
| 37 | M3JP280SMA | 8 | 3GJP284210-A_G | 3GJP284210-B_G |
| 45 | M3JP280SMB | 8 | 3GJP284220-A_G | 3GJP284220-B_G |
| 55 | M3JP315SMA | 8 | 3GJP314210-A_G | 3GJP314210-B_G |
| 75 | M3JP315SMB | 8 | 3GJP314220-A_G | 3GJP314220-B_G |
| 90 | M3JP315SMC | 8 | 3GJP314230-A_G | 3GJP314230-B_G |
| 110 | M3JP315MLA | 8 | 3GJP314410-A_G | 3GJP314410-B_G |
| 132 | M3JP355SMA | 8 | 3GJP354210-A_G | 3GJP354210-B_G |
| 160 | M3JP355SMB | 8 | 3GJP354220-A_G | 3GJP354220-B_G |
| 200 | M3JP355SMC | 8 | 3GJP354230-A_G | 3GJP354230-B_G |
| 250 | M3JP355MLB | 8 | 3GJP354420-A_G | 3GJP354420-B_G |
| 315 | M3JP400LKA | 8 | 3GJP404810-A_G | 3GJP404810-B_G |
| 315 | M3JP400LA | 8 | 3GJP404510-A_G | 3GJP404510-B_G |
| 355 | M3JP400LKB | 8 | 3GJP404820-A_G | 3GJP404820-B_G |
| 355 | M3JP400LB | 8 | 3GJP404520-A_G | 3GJP404520-B_G |
| 400 | M3JP400LKC | 8 | 3GJP404830-A_G | 3GJP404830-B_G |
| 400 | M3JP400LC | 8 | 3GJP404530-A_G | 3GJP404530-B_G |
| 430 | M3JP450LA | 8 | 3GJP454510-A_G | 3GJP454510-B_G |
| 470 | M3JP450LB | 8 | 3GJP454520-A_G | 3GJP454520-B_G |
| 530 | M3JP450LC | 8 | 3GJP454530-A_G | 3GJP454530-B_G |
| 600 | M3JP450LD | 8 | 3GJP454540-A_G | 3GJP454540-B_G |
| 750 دورة/دقيقة = 8 أقطاب | ||||
| 18.5 | M3JP200MLB | 8 | 3GJP204420-A_G | 3GJP204420-B_G |
| 30 | M3JP225SMC | 8 | 3GJP224230-A_G | 3GJP224230-B_G |
| 37 | M3JP250SMB | 8 | 3GJP254220-A_G | 3GJP254220-B_G |
| 55 | M3JP280SMC | 8 | 3GJP284230-A_G | 3GJP284230-B_G |
| 600 دورة/دقيقة = 10 أقطاب | ||||
| 3 | M3JP160MLA | 10 | 3GJP165410-A_H | 3GJP165410-B_H |
| 4 | M3JP160MLB | 10 | 3GJP165420-A_H | 3GJP165420-B_H |
| 5.5 | M3JP160MLC | 10 | 3GJP165430-A_H | 3GJP165430-B_H |
| 7.5 | M3JP180MLB | 10 | 3GJP185420-A_H | 3GJP185420-B_H |
| 11 | M3JP200MLA | 10 | 3GJP205410-A_G | 3GJP205410-B_G |
| 15 | M3JP200MLB | 10 | 3GJP205420-A_G | 3GJP205420-B_G |
| 18.5 | M3JP225SMB | 10 | 3GJP225220-A_G | 3GJP225220-B_G |
| 22 | M3JP225SMC | 10 | 3GJP225230-A_G | 3GJP225230-B_G |
| 30 | M3JP250SMB | 10 | 3GJP255220-A_G | 3GJP255220-B_G |
| 37 | M3JP280SMB | 10 | 3GJP285220-A_G | 3GJP285220-B_G |
| 45 | M3JP280SMC | 10 | 3GJP285230-A_G | 3GJP285230-B_G |
| 55 | M3JP315SMB | 10 | 3GJP315220-A_G | 3GJP315220-B_G |
| 75 | M3JP315SMC | 10 | 3GJP315230-A_G | 3GJP315230-B_G |
| 90 | M3JP315MLA | 10 | 3GJP315410-A_G | 3GJP315410-B_G |
| 110 | M3JP355SMA | 10 | 3GJP355210-A_G | 3GJP355210-B_G |
| 132 | M3JP355SMB | 10 | 3GJP355220-A_G | 3GJP355220-B_G |
| 160 | M3JP355SMC | 10 | 3GJP355230-A_G | 3GJP355230-B_G |
| 200 | M3JP355MLB | 10 | 3GJP355420-A_G | 3GJP355420-B_G |
| 250 | M3JP400LB | 10 | 3GJP405520-A_G | 3GJP405520-B_G |
| 250 | M3JP400LKB | 10 | 3GJP405820-A_G | 3GJP405820-B_G |
| 315 | M3JP400LKC | 10 | 3GJP405830-A_G | 3GJP405830-B_G |
| 315 | M3JP400LC | 10 | 3GJP405530-A_G | 3GJP405530-B_G |
| 355 | M3JP450LB | 10 | 3GJP455520-A_G | 3GJP455520-B_G |
| 400 | M3JP450LC | 10 | 3GJP455530-A_G | 3GJP455530-B_G |
| 450 | M3JP450LD | 10 | 3GJP455540-A_G | 3GJP455540-B_G |
| 500 ص / دقيقة = 12 قطبا | ||||
| 2.2 | M3JP160MLB | 12 | 3GJP166420-A_H | 3GJP166420-B_H |
| 3 | M3JP160MLC | 12 | 3GJP166430-A_H | 3GJP166430-B_H |
| 4 | M3JP160MLD | 12 | 3GJP166440-A_H | 3GJP166440-B_H |
| 5.5 | M3JP180MLB | 12 | 3GJP186420-A_H | 3GJP186420-B_H |
| 30 | M3JP280SMB | 12 | 3GJP286220-A_G | 3GJP286220-B_G |
| 37 | M3JP280SMC | 12 | 3GJP286230-A_G | 3GJP286230-B_G |
| 45 | M3JP315SMB | 12 | 3GJP316220-A_G | 3GJP316220-B_G |
| 55 | M3JP315SMC | 12 | 3GJP316230-A_G | 3GJP316230-B_G |
| 75 | M3JP315MLA | 12 | 3GJP316410-A_G | 3GJP316410-B_G |
| 90 | M3JP355SMA | 12 | 3GJP356210-A_G | 3GJP356210-B_G |
| 110 | M3JP355SMB | 12 | 3GJP356220-A_G | 3GJP356220-B_G |
| 132 | M3JP355SMC | 12 | 3GJP356230-A_G | 3GJP356230-B_G |
| 160 | M3JP355MLB | 12 | 3GJP356420-A_G | 3GJP356420-B_G |
| 200 | M3JP400LKB | 12 | 3GJP406820-A_G | 3GJP406820-B_G |
| 200 | M3JP400LB | 12 | 3GJP406520-A_G | 3GJP406520-B_G |
| 250 | M3JP400LC | 12 | 3GJP406530-A_G | 3GJP406530-B_G |
| 250 | M3JP400LKC | 12 | 3GJP406830-A_G | 3GJP406830-B_G |
| 315 | M3JP450LC | 12 | 3GJP456530-A_G | 3GJP456530-B_G |
| 355 | M3JP450LD | 12 | 3GJP456540-A_G | 3GJP456540-B_G |
تم تصميم المحركات الحثية الخاصة بنا لتلبية احتياجاتك كمورد للمحركات الكهربائية. نحن نقدم بكل فخر طراز PSTX210 كخيار لاحتياجات المحرك الكهربائي ثلاثي الطور.
تعد المحركات الكهربائية ABB M2QA QABP QAEJ وMQAEJ M2QA مناسبة لمختلف التطبيقات والسيناريوهات. تعتبر هذه المحركات الكهربائية مثالية للاستخدام في المعدات الصناعية مثل المضخات والمراوح والضواغط والناقلات وغيرها الكثير. تم تصميم المحركات الكهربائية لتوفير أداء وموثوقية استثنائيين في البيئات الصناعية الصعبة.
تتوفر المحركات الكهربائية M2QA من ABB بخيارات مثبتة على القدم ومثبتة على الحافة، مما يجعلها سهلة التركيب والاستخدام. تتمتع هذه المحركات الكهربائية بعزم دوران يبلغ 200 نيوتن متر وتأتي مع عزل من الفئة F. تتمتع المحركات الكهربائية بنطاق جهد يتراوح بين 220 فولت إلى 480 فولت، مما يجعلها مناسبة للاستخدام في مجموعة من التطبيقات الصناعية.
إذا كنت تبحث عن مورد للمحركات الكهربائية، فإن ABB هي علامة تجارية موثوقة تقدم مجموعة من المحركات الكهربائية عالية الجودة مثل سلسلة M2QA ومحرك ABB M3BP. تم تصميم هذه المحركات الكهربائية لتوفير أداء استثنائي وموثوقية وكفاءة في مختلف التطبيقات الصناعية.
في الختام، يعد المحركان الكهربائيان ABB M2QA QABP QAEJ وMQAEJ M2QA حلاً مثاليًا لمختلف التطبيقات الصناعية. تتميز هذه المحركات الكهربائية بالكفاءة العالية والموثوقية وسهولة التركيب، مما يجعلها مناسبة تمامًا للبيئات الصناعية كثيرة المتطلبات. اتصل بمورد المحرك الكهربائي الخاص بك لمعرفة المزيد عن سلسلة ABB M2QA والمحركات الكهربائية الأخرى من ABB مثل محرك ABB M3BP.
